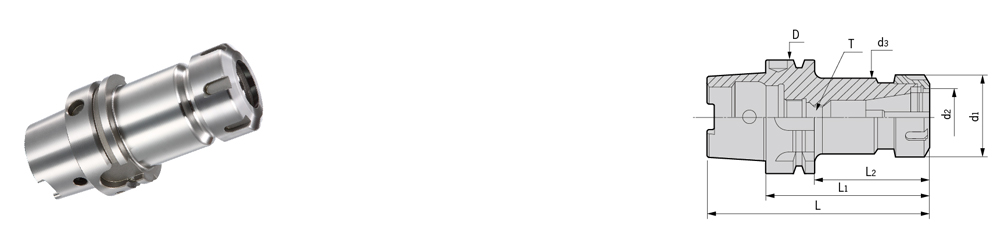

HSK-A-ERµ¯ÐÔͲ¼Ð±¾Ìå
HSK-A-ER Spring Collet Chuck
HSK-A-ERµ¯ÐÔͲ¼Ð±¾Ìå
,
ÐͺŠ                                                                                                       ÖØÁ¿

 Specifcation

 D d1 d2 L1

L2

L

T

Weight

HSK40A-







HSK50A-





























HSK63A-























































HSK100A-

 ER20-80 40 34 20 80 60 100 - 0.55
ER25-80 40 42 25 80 60 100 - 0.65
ER32-100 40 50 32 100 80 120 M10X1.5P 0.90
ER16-75 50 28 16 75 34 85 - 0.50
ER16-100 50 28 16 100 74 125 M10X1.5P 0.60
ER20-75 50 34 20 75 44 95 M12X1.75P 0.70
ER20-100 50 34 20 100 74 125 - 0.90
ER25-80 50 42 25 80 44 95 M16X2.0P 1.00
ER25-100 50 42 25 100 74 125 - 1.10
ER25-135 50 42 25 135 109 160  M16X2.0P 1.40
ER32-100 50 50 32 100 74 125 - 1.45
ER32-135 50 50 32 135 109 160 M16X2.0P 1.90
ER32-160 50 50 32 160 134 185 M16X2.0P 2.40
ER16-75 63 28 16 7549 107 - 1.00
ER16-100 63 28 16 100 74 132 M10X1.5P 1.10
ER16-120 63 28 16 120 94 152 M10X1.5P 1.20
ER16-160 63 28 16 160 134 192 M10X1.5P 1.40
ER20-80 63 34 20 80 49 107 - 1.00
ER20-100 63 34 20 100 74 132 M12X1.75P 1.20
ER20-120 63 34 20 120 94 152 M12X1.75P 1.30
ER20-160 63 34 20 160 134 192 M12X1.75P 1.70
ER25-80 63 42 25 80 49 107 - 1.10
ER25-100 63 42 25 100 74 132 M16X2.0P 1.40
ER25-120 63 42 25 120 94 152 M16X2.0P 1.80
ER25-150 63 42 25 150 124 182 M16X2.0P 2.00
ER32-100 63 50 32 100 74 132 - 1.60
ER32-125 63 50 32 125 99 157 M16X2.0P 2.00
ER32-160 63 50 32 160 134 192 M16X2.0P 2.50
ER40-100 63 63 40 100 74 132 - 2.40
ER40-120 63 63 40 120 99 152 M20X2.0P 2.60
ER40-160 63 63 40 160 134 192 M20X2.0P 2.95
ER16-100 100 28 16 100 71 150 M10X1.5P 3.40
ER16-160 100 28 16 160 131 210 M10X1.5P 3.70
ER20-100 100 34 20 100 71 150 M12X1.75P 3.50
ER20-160 100 34 20 160 131 210 M12X1.75P 3.90
ER25-100 100 42 25 100 71 150 M16X2.0P 3.70
ER25-160 100 42 25 160 131 210 M16X2.0P  4.20
ER25-200 100 42 25 200 171 250 M16X2.0P 4.70
ER32-100 100 50 32 100 71 150 - 3.90
ER32-160 100 50 32 160 131 210 M16X2.0P 4.70
ER32-200 100 50 32 200 171 250 M16X2.0P 5.20
ER40-100 100 63 40 100 71 150 M20X2.0P 4.30
ER40-160 100 63 40 160 131 210 M20X2.0P 5.00
ER40-200 100 63 40 200 171 250 M20X2.0P 5.60
×¢£ºÍ²¼ÐºÍ°âÊÖÐèµ¥¶À¶©¹º¡£
Notice: Collets and wrenchs shall be ordered separately.

Ìصã/ Feature
¡ö¶¯Æ½ºâÉ趨£º G6.3 £» 15,000 rpm¡£
 ¡öBalanced: G6.3; 15,000 rpm;
¡ö3D´¦¾¶ÏòÌø¶¯0.02 mm¡£
 ¡öRunout (X3D): < 0.02 mm.
