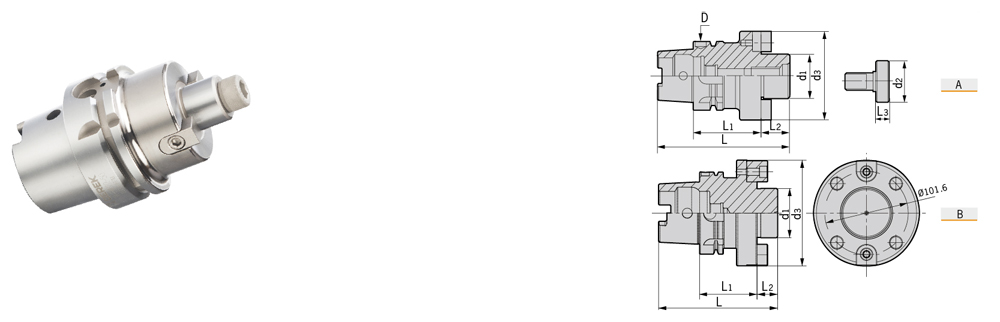

HSK-A-FMBƽÃæϳµ¶±ú
HSK-A-FMB Face Mill Holder
HSK-A-FMBƽÃæϳµ¶±ú
ÐͺŠͼʾ                                                                    µ¶ÅÌËø½ôÂݶ¤  µæȦ
 ÖØÁ¿

 Specifcation

 Figure D d1 d2

d3

L1

L2

 L3 L

Locking screw for cutter

Washer

Weight

HSK50A-





HSK63A-





















HSK100A-

 FMB22-60 A 50 22 26 48 60 18 14 104 E100U300 - 1.00
FMB27-60 A 50 27 31.5 60 60 20 16 106 E120U300 FM-1 1.10
FMB22-50 A 63 22 26 48 50 18 - 101 E100U300 - 1.30
FMB22-100 A 63 22 26 48 100 18 - 151 E100U300 - 1.80
FMB27-60 A 63 27 31.5 60 60 20 16 113 E120U300 FM-1 1.60
FMB27-100 A 63 27 31.5 60 100 20 16 153 E120U300 FM-1 2.30
FMB32-60 A 63 32 41 78 60 22 16 116 E160U350 FM-2 2.00
FMB32-100 A 63 32 41 78 100 22 16 156 E160U350 FM-2 2.80
FMB40-60 A 63 40 48 80 60 25 20.5 119 E200U350 FM-3 2.20
FMB22-50 A 100 22 26 48 50 18 14 119 E100U300 - 2.90
FMB22-100 A 100 22 26 48 100 18 14 169 E100U300 - 3.90
FMB27-50 A 100 27 31.5 60 50 20 16 121 E120U300 FM-1 2.90
FMB27-100 A 100 27 31.5 60 100 20 16 171 E120U300 FM-1 3.70
FMB32-50 A 100 32 41 78 50 22 16 124 E160Z500-40 - 3.80
FMB32-100 A 100 32 41 78 100 22 16 174 E160Z500-40 - 4.80
FMB40-60 A 100 40 48 80 60 25 20.5 137 E200Z500-50 - 4.10
FMB40-100 A 100 40 48 80 100 25 20.5 177 E200Z500-50 - 4.90
FMB60F-70 B 100 60 - 129 70 25 101.6 160 E160U500   5.50
