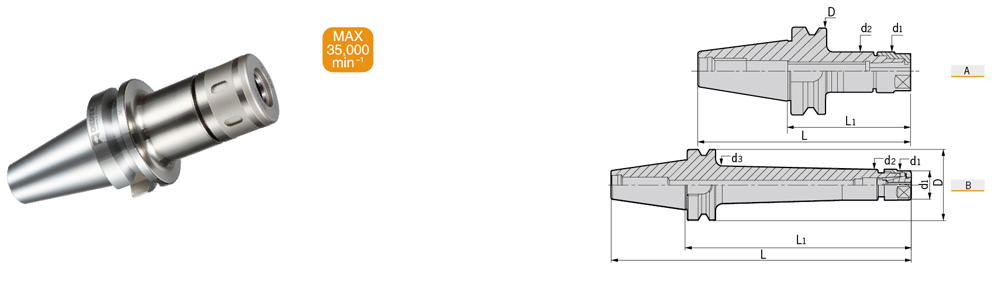

BT-DSK¸ßËÙ¾«ÃÜͲ¼Ð±¾Ìå
BT-DSK High Precision Chuck
BT-DSK¸ßËÙ¾«ÃÜͲ¼Ð±¾Ìå |
 |
| ÐͺŠ|
ͼʾ |
¼Ð³Ö·¶Î§
|
|
|
|
|
|
|
|
ÊÊÓÃͲ¼Ð |
|
Specifcation |
Figure |
Range |
D |
d1 |
d2 |
d3 |
L |
L1 |
T |
Suit collet |
|
BT30- |
DSK6-70 |
A |
0.7-6.0 |
46 |
19.5 |
20 |
- |
118.4 |
70 |
M6x1 |
DSK6 |
| DSK6-100 |
A |
0.7-6.0 |
46 |
19.5 |
20 |
- |
148.4 |
100 |
M6x1 |
DSK6 |
| DSK10-70 |
A |
1.75-10.0 |
46 |
27 |
27.5 |
- |
118.4 |
70 |
M10x1.5 |
DSK10 |
| DSK10-100 |
A |
1.75-10.0 |
46 |
27 |
27.5 |
- |
148.4 |
100 |
M10x1.5 |
DSK10 |
| DSK16-100 |
A |
2.75-16.0 |
46 |
40 |
40.5 |
- |
148.4 |
100 |
M16x2 |
DSK16 |
| DSK16-120 |
A |
2.75-16.0 |
46 |
40 |
40.5 |
- |
168.4 |
120 |
M16x2 |
DSK16 |
| ÐͺŠ|
ͼʾ |
¼Ð³Ö·¶Î§
|
|
|
|
|
|
|
|
ÊÊÓÃͲ¼Ð |
|
Specifcation |
Figure |
Range |
D |
d1 |
d2 |
d3 |
L |
L1 |
T |
Suit collet |
|
BT30-
BT40-
BT50- |
DSK16-150 |
A |
2.75-16.0 |
46 |
40 |
40.5 |
- |
198.4 |
150 |
M16x2 |
DSK16 |
| DSK20-70 |
A |
3.5-20.0 |
46 |
48 |
48.5 |
- |
118.4 |
70 |
M16x2 |
DSK20 |
| DSK20-100 |
A |
3.5-20.0 |
46 |
48 |
48.5 |
- |
148.4 |
100 |
M16x2 |
DSK20 |
| DSK25-100 |
A |
16.0-25.4 |
46 |
55 |
55 |
- |
148.4 |
100 |
M20x2 |
DSK25 |
| DSK6-70 |
A |
0.7-6.0 |
63 |
19.5 |
20 |
- |
135.4 |
70 |
M6x1 |
DSK6 |
| DSK6-100 |
A |
0.7-6.0 |
63 |
19.5 |
20 |
- |
165.4 |
100 |
M6x1 |
DSK6 |
| DSK6-120 |
A |
0.7-6.0 |
63 |
19.5 |
20 |
- |
185.4 |
120 |
M6x1 |
DSK6 |
| DSK6-150L |
B |
0.7-6.0 |
63 |
19.5 |
20 |
26.4 |
215.4 |
150 |
M6x1 |
DSK6 |
| DSK10-70 |
A |
1.75-10.0 |
63 |
27 |
27.5 |
- |
135.4 |
70 |
M10x1.5 |
DSK10 |
| DSK10-100 |
A |
1.75-10.0 |
63 |
27 |
27.5 |
- |
165.4 |
100 |
M10x1.5 |
DSK10 |
| DSK10-120 |
A |
1.75-10.0 |
63 |
27 |
27.5 |
- |
185.4 |
120 |
M10x1.5 |
DSK10 |
| DSK10-150 |
A |
1.75-10.0 |
63 |
27 |
27.5 |
- |
215.4 |
150 |
M10x1.5 |
DSK10 |
| DSK10-200L |
B |
1.75-10.0 |
63 |
27 |
27.5 |
33.7 |
265.4 |
200 |
M10x1.5 |
DSK10 |
| DSK16-70 |
A |
2.75-16.0 |
63 |
40 |
40.5 |
- |
135.4 |
70 |
M16x2 |
DSK16 |
| DSK16-100 |
A |
2.75-16.0 |
63 |
40 |
40.5 |
- |
165.4 |
100 |
M16x2 |
DSK16 |
| DSK16-120 |
A |
2.75-16.0 |
63 |
40 |
40.5 |
- |
185.4 |
120 |
M16x2 |
DSK16 |
| DSK16-150 |
A |
2.75-16.0 |
63 |
40 |
40.5 |
- |
215.4 |
150 |
M16x2 |
DSK16 |
| DSK16-200L |
B |
2.75-16.0 |
63 |
40 |
40.5 |
45.7 |
265.4 |
200 |
M16x2 |
DSK16 |
| DSK20-70 |
A |
3.5-20.0 |
63 |
48 |
48.5 |
- |
135.4 |
70 |
M16x2 |
DSK20 |
| DSK20-100 |
A |
3.5-20.0 |
63 |
48 |
48.5 |
- |
165.4 |
100 |
M16x2 |
DSK20 |
| DSK20-120 |
A |
3.5-20.0 |
63 |
48 |
48.5 |
- |
185.4 |
120 |
M16x2 |
DSK20 |
| DSK20-150 |
A |
3.5-20.0 |
63 |
48 |
48.5 |
- |
215.4 |
150 |
M16x2 |
DSK20 |
| DSK20-200L |
B |
3.5-20.0 |
63 |
48 |
48.5 |
55.7 |
265.4 |
200 |
M16x2 |
DSK20 |
| DSK25-100 |
A |
16.0-25.4 |
63 |
55 |
55 |
- |
165.4 |
100 |
M20x2 |
DSK25 |
| DSK25-120 |
A |
16.0-25.4 |
63 |
55 |
55 |
- |
185.4 |
120 |
M20x2 |
DSK25 |
| DSK25-150 |
A |
16.0-25.4 |
63 |
55 |
55 |
- |
215.4 |
150 |
M20x2 |
DSK25 |
| DSK25-200L |
B |
16.0-25.4 |
63 |
55 |
55 |
59.9 |
265.4 |
200 |
M20x2 |
DSK25 |
| DSK10-105 |
A |
1.75-10.0 |
100 |
27 |
27.5 |
- |
206.8 |
105 |
M10x1.5 |
DSK10 |
| DSK10-135 |
A |
1.75-10.0 |
100 |
27 |
27.5 |
- |
236.8 |
135 |
M10x1.5 |
DSK10 |
| DSK10-165 |
A |
1.75-10.0 |
100 |
27 |
27.5 |
- |
266.8 |
165 |
M10x1.5 |
DSK10 |
| DSK10-200L |
B |
1.75-10.0 |
100 |
27 |
27.5 |
35.2 |
301.8 |
200 |
M10x1.5 |
DSK10 |
| DSK16-100 |
A |
2.75-16.0 |
100 |
40 |
40.5 |
- |
201.8 |
100 |
M16x2 |
DSK16 |
| DSK16-125 |
A |
2.75-16.0 |
100 |
40 |
40.5 |
- |
226.8 |
125 |
M16x2 |
DSK16 |
| DSK16-150 |
A |
2.75-16.0 |
100 |
40 |
40.5 |
- |
251.8 |
150 |
M16x2 |
DSK16 |
| DSK16-200L |
B |
2.75-16.0 |
100 |
40 |
40.5 |
48.4 |
301.8 |
200 |
M16x2 |
DSK16 |
| DSK16-250L |
B |
2.75-16.0 |
100 |
40 |
40.5 |
48.4 |
351.8 |
250 |
M16x2 |
DSK16 |
| DSK20-100 |
A |
3.5-20.0 |
100 |
48 |
48.5 |
- |
201.8 |
100 |
M16x2 |
DSK20 |
| DSK20-125 |
A |
3.5-20.0 |
100 |
48 |
48.5 |
- |
226.8 |
125 |
M16x2 |
DSK20 |
| DSK20-150 |
A |
3.5-20.0 |
100 |
48 |
48.5 |
- |
251.8 |
150 |
M16x2 |
DSK20 |
| DSK20-200 |
A |
3.5-20.0 |
100 |
48 |
48.5 |
- |
301.8 |
200 |
M16x2 |
DSK20 |
| DSK20-250L |
B |
3.5-20.0 |
100 |
48 |
48.5 |
55.4 |
351.8 |
250 |
M16x2 |
DSK20 |
| DSK20-300L |
B |
3.5-20.0 |
100 |
48 |
48.5 |
55.4 |
401.8 |
300 |
M16x2 |
DSK20 |
| DSK25-150 |
A |
16.0-25.4 |
100 |
55 |
55 |
- |
251.8 |
150 |
M20x2 |
DSK25 |
| DSK25-200 |
A |
16.0-25.4 |
55 |
55 |
- |
301.8 |
200 |
M20x2 |
DSK25 |
| DSK25-250L |
B |
16.0-25.4 |
100 |
55 |
55 |
61.4 |
351.8 |
250 |
M20x2 |
DSK25 |
| DSK25-300L |
B |
16.0-25.4 |
100 |
55 |
55 |
61.4 |
401.8 |
300 |
M20x2 |
DSK25 |
×¢£ºÍ²¼ÐÓë°âÊÖÐèµ¥¶ÀÁí¹º£¬¿ÉÑ¡ÅäÖÐÐijöË®ÂÝñÓë¶ËÃæ³öË®ÂÝñÏê¼ûµÚ¼¸Ò³¡£
|
| Notice: Collets and wrenchs shall be ordered separately. |
| |
| Ìصã/ Feature |
|
¡öDHPµ¶¾ßϵÁÐÓÃ;¸ßתËÙ¡¢¸ß¾«ÃÜÇÐÏ÷¼Ó¹¤£¬ÇÐÏ÷Ч¹û¼Ñ¡£
|
¡öSuitable for high-speed and high precision cutting; |
¡ö¶¯Æ½ºâÉ趨£º G2.5 £» 20,000 rpm¡£
|
¡öBalanced: G2.5; 20,000 rpm; |
¡ö3D´¦¾¶ÏòÌø¶¯0.005 mm¡£
|
¡öRunout (X3D): < 0.005 mm. |
|
