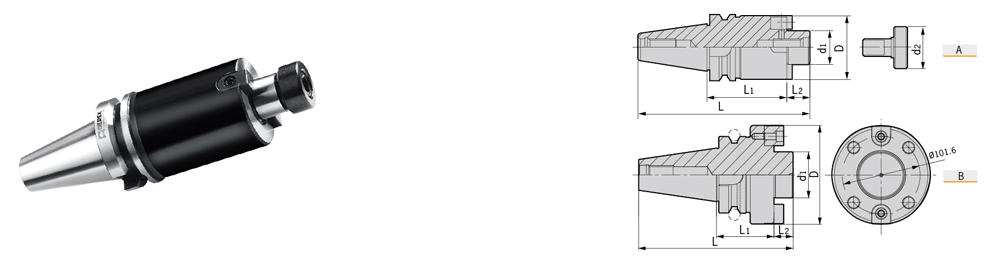

BT-FMAƽÃæϳµ¶±ú£¨Ö±±úʽ£©
BT-FMA Face Mill Holder
BT-FMAƽÃæϳµ¶±ú£¨Ö±±úʽ£©
ÐͺŠͼʾ
                                                                                µ¶ÅÌËø½ôÂݶ¤
 µæȦ
 ÊÊÓÃͲ¼Ð

 Specifcation

 Figure D d1 d2

L1

L1

L

 Locking screw for cutter Washer

Suit collet

BT30-





BT40-

















BT50-

  FMA25.4-45 A 50 25.40 31.5 45 20 113.4 E120U300 - 1.10
 FMA25.4-60 A 50 25.40 31.5 60 20 128.4 E120U300 - 1.30
 FMA31.75-45 A 60 31.75 40 45 22 115.4 E160U350 - 1.35
 FMA25.4-45 A 50 25.40 31.5 45 20 130.4 E120U300 - 1.54
 FMA25.4-60 A 50 25.40 31.5 60 20 145.4 E120U300 - 1.77
 FMA25.4-90 A 50 25.40 31.5 90 20 175.4 E120U300 - 2.23
 FMA25.4-105 A 50 25.40 31.5 105 20 190.4 E120U300 - 2.47
 FMA31.75-45 A 60 31.75 40 45 22 132.4 E160U350 - 1.65
 FMA31.75-75 A 60 31.75 40 75 22 162.4 E160U350 FM-2 2.31
 FMA31.75-90 A 60 31.75 40 90 22 177.4 E160U350 FM-2 2.64
 FMA38.10-60 A 75 38.10 50 60 25 150.4 E160U350 FM-2 2.36
 FMA50.80-60 A 98 50.80 65 60 36 161.4 E160U350 FM-3 3.50
 FMA25.4-45 A 50 25.40 31.5 45 20 166.8 E120U300 - 3.87
 FMA25.4-90 A 50 25.40 31.5 90 20 211.8 E120U300 - 4.54
 FMA25.4-150 A 50 25.40 31.5 150 20 271.8 E120U300 - 5.47
 FMA31.75-45 A 60 31.75 40 45 22 168.8 E160Z350-40 - 4.04
 FMA31.75-75 A 60 31.75 40 75 22 198.8 E160Z350-40 - 4.72
 FMA31.75-105 A 98 31.75 40 105 22 228.8 E160Z350-40 - 7.19
 FMA38.10-45 A 80 38.10 50 45 25 171.8 E160Z350-50 - 4.27
 FMA38.10-75 A 80 38.10 50 75 25 201.8 E160Z350-50 - 5.48
 FMA50.80-45 A 95 50.80 65 45 36 182.8 E240Z350-65 - 4.74
 FMA50.80-75 A 95 50.80 65 75 36 212.8 E240Z350-65 - 6.35
 FMA47.625F-75 A 128.75 47.625 - 75 32 208.8 E160U500 - 7.60
