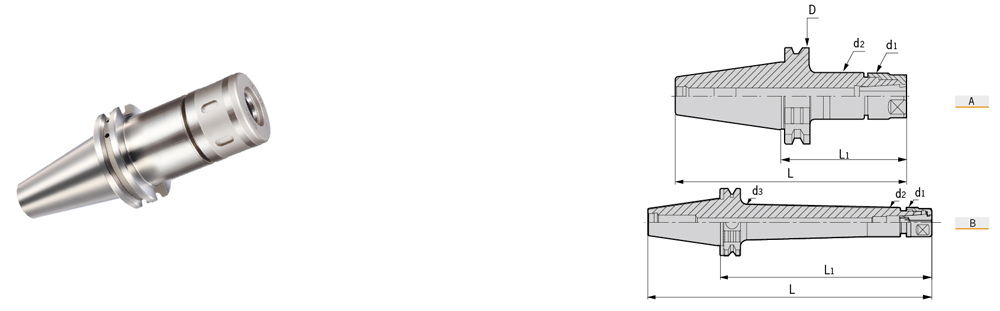

SK-DSK¸ßËÙ¾«ÃÜͲ¼Ð±¾Ìå
SK-DSK High Speed Milling Holder
SK-DSK¸ßËÙ¾«ÃÜͲ¼Ð±¾Ìå
ÐͺŠͼʾ ¼Ð³Ö·¶Î§
                                                                                             ÊÊÓÃͲ¼Ð

 Specifcation

 Figure Range D d1

d2

d3

L

 L1 T

Suit collet

SK30-





























SK40-

  DSK6-70 A 0.7-6.0 50 19.5 20 - 117.8 70 M6x1 DSK6
 DSK6-100 A 0.7-6.0 50 19.5 20 - 147.8 100 M6x1 DSK6
 DSK10-70 A 1.75-10.0 50 27 27.5 - 117.8 70 M10x1.5 DSK10
 DSK10-100 A 1.75-10.0 50 27 27.5 - 147.8 100 M10x1.5 DSK10
 DSK16-100 A 2.75-16.0 50 40 40.5 - 147.8 100 M16x2 DSK16
 DSK16-120 A 2.75-16.0 50 40 40.5 - 167.8 125 M16x2 DSK16
 DSK16-150 A 2.75-16.0 50 40 40.5 - 197.8 150 M16x2 DSK16
 DSK20-70 A 3.5-20.0 50 48 48.5 - 117.8 70 M16x2 DSK20
 DSK20-100 A 3.5-20.0 50 48 48.5 - 147.8 100 M16x2 DSK20
 DSK25-100 A 16.0-25.4 50 55 55 - 147.8 100 M20x2 DSK25
 DSK6-70 A 0.7-6.0 63.55 19.5 20 - 138.4 70 M6x1 DSK6
 DSK6-100 A 0.7-6.0 63.55 19.5 20 - 168.4 100 M6x1 DSK6
 DSK6-120 A 0.7-6.0 63.55 19.5 20   188.4 120 M6x1 DSK6
 DSK6-150L B 0.7-6.0 63.55 19.5 20 26.4 218.4 150 M6x1 DSK6
 DSK10-70 A 1.75-10.0 63.55 27 27.5 - 138.4 70 M10x1.5 DSK10
 DSK10-100 A 1.75-10.0 63.55 27 27.5 - 168.4 100 M10x1.5 DSK10
 DSK10-120 A 1.75-10.0 63.55 27 27.5 - 188.4 120 M10x1.5 DSK10
 DSK10-150 A 1.75-10.0 63.55 27 27.5 - 218.4 150 M10x1.5 DSK10
 DSK10-200L B 1.75-10.0 63.55 27 27.5 33.7 268.4 200 M10x1.5 DSK10
 DSK16-100 A 2.75-16.0 63.55 40 40.5 - 168.4 100 M16x2 DSK16
 DSK16-120 A 2.75-16.0 63.55 40 40.5 - 188.4 120 M16x2 DSK16
 DSK16-150 A 2.75-16.0 63.55 40 40.5 - 218.4 150 M16x2 DSK16
 DSK16-200L B 2.75-16.0 63.55 40 40.5 45.7 268.4 200 M16x2 DSK16
 DSK20-100 A 3.5-20.0 63.55 48 48.5 - 168.4 100 M16x2 DSK20
 DSK20-120 A 3.5-20.0 63.55 48 48.5 - 188.4 120 M16x2 DSK20
 DSK20-150 A 3.5-20.0 63.55 48 48.5 - 218.4 150 M16x2 DSK20
 DSK20-200L B 3.5-20.0 63.55 48 48.5 55.7 268.4 200 M16x2 DSK20
 DSK25-120 A 16.0-25.4 63.55 55 55 - 188.4 120 M20x2 DSK25
 DSK25-150 A 16.0-25.4 63.55 55 55 - 218.4 150 M20x2 DSK25
 DSK25-200L B 16.0-25.4 63.55 55 55 59.9 268.4 200 M20x2 DSK25
SK50-  DSK10-105 A 1.75-10.0 97.5 27 27.5 - 206.75 105 M10x1.5 DSK10
 DSK10-135 A 1.75-10.0 97.5 27 27.5 - 236.75 135 M10x1.5 DSK10
 DSK10-165 A 1.75-10.0 97.5 27 27.5 - 266.75 165 M10x1.5 DSK10
 DSK10-200L B 1.75-10.0 97.5 27 27.5 35.2 301.75 200 M10x1.5 DSK10
 DSK16-125 A 2.75-16.0 97.5 40 40.5 - 226.75 125 M16x2 DSK16
 DSK16-150 A 2.75-16.0 97.5 40 40.5 - 251.75 150 M16x2 DSK16
 DSK16-200 B 2.75-16.0 97.5 40 40.5 48.4 301.75 200 M16x2 DSK16
 DSK16-250L B 2.75-16.0 97.5 40 40.5 48.4 351.75 250 M16x2 DSK16
 DSK20-150 A 3.5-20.0 97.5 48 48.5 - 251.75 150 M16x2 DSK20
 DSK20-200 A 3.5-20.0 97.5 48 48.5 - 301.75 200 M16x2 DSK20
 DSK20-250L B 3.5-20.0 97.5 48 48.5 55.4 351.75 250 M16x2 DSK20
 DSK20-300L B 3.5-20.0 97.5 48 48.5 55.4 401.75 300 M16x2 DSK20
 DSK25-150 A 16.0-25.4 97.5 55 55 - 251.75 150 M20x2 DSK25
 DSK25-200 A 16.0-25.4 97.5 55 55 - 301.75 200 M20x2 DSK25
 DSK25-250L B 16.0-25.4 97.5 55 55 61.4 351.75 250 M20x2 DSK25
 DSK25-300L B 16.0-25.4 97.5 55 55 61.4 401.75 300 M20x2 DSK25
×¢£ºÍ²¼ÐÓë°âÊÖÐèµ¥¶ÀÁí¹º£¬¿ÉÑ¡ÅäÖÐÐijöË®ÂÝñÓë¶ËÃæ³öË®ÂÝñÏê¼ûµÚ¼¸Ò³¡£
Notice: Collets and wrenchs shall be ordered separately.

Ìصã/ Feature
¡ö¶¯Æ½ºâÉ趨£º  G2.5 £» 20,000 rpm¡£
 ¡öBalanced: G2.5; 20,000 rpm;
¡ö3D´¦¾¶ÏòÌø¶¯0.005 mm¡£
 ¡öRunout (X3D): < 0.005 mm.
