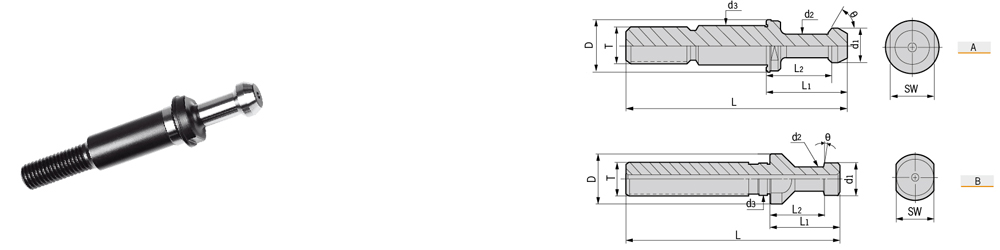

MTBÀ­½ôÀ­Í·
MTB Tension Screw
MTBÀ­½ôÀ­Í·
ÐͺŠͼʾ                                                                                                                                            ÖØÁ¿

 Specifcation

 Figure D d1 d2

d3

L1

 L2 L ¦È

G

 SW

Weight

BT30-

BT40-





BT50-

SK30-

SK40-



SK50-

  45-MT2 A 16.5 11 7 12 23 18 105 45¡ã M10 13 0.07
 45-MT3 A 23 15 10 17 35 28 110 45¡ã M12 19 0.10
 45-MT4 A 23 15 10 17 35 28 110 45¡ã M16 19 0.10
 45-MT5 A 38 23 17 25 45 35 165 45¡ã M20 30 0.65
 15-MT2 B 17 13 9 13 24 19 105 15¡ã M10 14 0.07
 15-MT3 B 23 19 14 17 26 20 100 15¡ã M12 19 0.10
 15-MT4 B 23 16 14 17 26 20 100 15¡ã M16 19 0.10
 15-MT5 B 36 28 21 25 34 25 145 15¡ã M20 30 0.65
