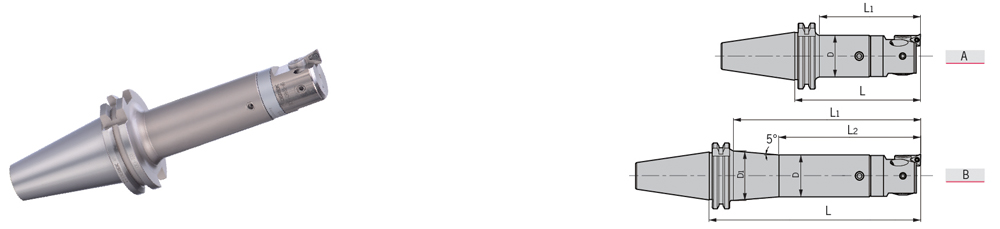

SK-DBH´ÖïÛÍ·×é¼þ
|
½MºÏ |
·½Ê½ |
|
| |||||||||
| ÐÍÌ– |
To |
ol |
ˆDʾ |
¼Ó¹¤¹ ‡ú | ÖØÁ¿ | |||||||
|
Specifcation |
çMî^ |
µ¶±ú |
çMî^ |
Fig | D | D1 | L1 | L2 | L |
Boring Range |
Weight | |
|
|
Boring |
Adapter |
Boring Head |
|
| |||||||
|
SK30-
SK40-
SK50- |
DBH2533-125 | SK30- | DCK2-80 | DCK2-DBH25-33 | A | 24 | - | 90.4 | - | 115.5 | 25-33 | 0.66 |
| DBH3242-135 | DCK3-80 | DCK3-DBH32-42 | A | 31 | - | 94.9 | - | 120 | 32-42 | 0.95 | ||
| DBH4055-135 | DCK4-70 | DCK4-DBH40-55 | A | 39 | - | 95.9 | - | 117 | 40-55 | 1.17 | ||
| DBH5270-145 | DCK5-70 | DCK5-DBH52-70 | A | 50 | - | 107.9 | - | 127 | 52-70 | 1.76 | ||
| DBH6892-145 | DCK6-60 | DCK6-DBH68-92 | A | 64 | - | 111.9 | - | 131 | 68-92 | 2.49 | ||
| DBH90122-160 | DCK6-60 | DCK6-DBH90-122 | A | 64 | - | 111.9 | - | 131 | 90-122 | 3.32 | ||
| DBH2533-120 | SK40- | DCK2-75 | DCK2-DBH25-33 | A | 24 | - | 85.4 | - | 110.5 | 25-33 | 1.22 | |
| DBH2533-175 | DCK2-130L | DCK2-DBH25-33 | B | 24 | 28.3 | 140.4 | 100.5 | 165.5 | 25-33 | 1.45 | ||
| DBH3242-135 | DCK3-80 | DCK3-DBH32-42 | A | 31 | - | 92.9 | - | 120 | 32-42 | 1.49 | ||
| DBH3242-190 | DCK3-135L | DCK3-DBH32-42 | B | 31 | 34.5 | 151.9 | 115 | 175 | 32-42 | 1.81 | ||
| DBH4055-135 | DCK4-70 | DCK4-DBH40-55 | A | 39 | - | 93.9 | - | 117 | 40-55 | 1.73 | ||
| DBH4055-215 | DCK4-150L | DCK4-DBH40-55 | B | 39 | 43.4 | 173.9 | 132 | 197 | 40-55 | 2.39 | ||
| DBH5270-155 | DCK5-80 | DCK5-DBH52-70 | A | 50 | - | 113.9 | - | 137 | 52-70 | 2.40 | ||
| DBH6892-175 | DCK6-90 | DCK6-DBH68-92 | A | 64 | - | 141.9 | - | 161 | 68-92 | 2.82 | ||
| DBH90122-190 | DCK6-90 | DCK6-DBH90-122 | A | 64 | - | 141.9 | - | 161 | 90-122 | 3.65 | ||
| DBH120164-171 | DCK7-100 | DCK7-DBH120-164 | A | 90 | - | 146.9 | - | 171 | 120-164 | 8.20 | ||
| DBH160204-171 | DCK7-100 | DCK7-DBH160-204 | A | 90 | - | 146.9 | - | 171 | 160-204 | 9.30 | ||
| DBH2533-125 | SK50- | DCK2-80 | DCK2-DBH25-33 | A | 24 | - | 86.4 | - | 115.5 | 25-33 | 3.52 | |
| DBH2533-180 | DCK2-135L | DCK2-DBH25-33 | B | 24 | 26.6 | 143.4 | 100.5 | 170.5 | 25-33 | 4.01 | ||
| DBH3242-140 | DCK3-85 | DCK3-DBH32-42 | A | 31 | - | 95.9 | - | 125 | 32-42 | 3.67 | ||
| DBH3242-195 | DCK3-140L | DCK3-DBH32-42 | B | 31 | 32.7 | 152.9 | 125 | 180 | 32-42 | 4.36 | ||
| DBH4055-165 | DCK4-100 | DCK4-DBH40-55 | A | 39 | - | 119.9 | - | 147 | 40-55 | 4.47 | ||
| DBH4055-225 | DCK4-160L | DCK4-DBH40-55 | B | 39 | 42.5 | 179.9 | 132 | 207 | 40-55 | 4.99 | ||
| DBH5270-165 | DCK5-90 | DCK5-DBH52-70 | A | 50 | - | 119.9 | - | 147 | 52-70 | 5.18 | ||
| DBH5270-285 | DCK5-210L | DCK5-DBH52-70 | B | 50 | 57.8 | 239.9 | 177 | 267 | 52-70 | 6.80 | ||
| DBH6892-170 | DCK6-85 | DCK6-DBH68-92 | A | 64 | - | 126.9 | - | 156 | 68-92 | 5.88 | ||
| DBH6892-385 | DCK6-300L | DCK6-DBH68-92 | B | 64 | 80.5 | 347.9 | 241 | 371 | 68-92 | 11.81 | ||
| DBH90122-185 | DCK6-85 | DCK6-DBH90-122 | A | 64 | - | 126.9 | - | 156 | 90-122 | 6.71 | ||
| DBH90122-400 | DCK6-300L | DCK6-DBH90-122 | B | 64 | 80.5 | 347.9 | 241 | 371 | 90-122 | 12.64 | ||
| DBH120164-156 | DCK7-85 | DCK7-DBH120-164 | A | 90 | - | 131.9 | - | 156 | 120-164 | 9.66 | ||
| DBH160204-156 | DCK7-85 | DCK7-DBH160-204 | A | 90 | - | 131.9 | - | 156 | 160-204 | 10.76 | ||
