²úÆ·ÖÐÐÄ
ÄúËùÔÚµÄλÖãºÍøÕ¾Ê×Ò³ > ²úÆ·ÖÐÐÄ

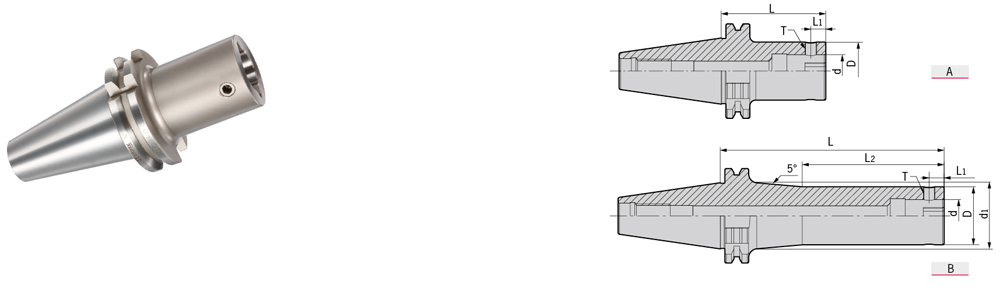

SK-DCKïÛÍ·µ¶±ú
| ÐͺŠ| ͼʾ | ²à¹ÌÂݶ¤ |
LÐÍ°âÊÖ |
ÖØÁ¿ | |||||||
|
Specifcation |
Figure | D |
d1 |
d |
L1 |
L2 | L | Side-lock screw | Wrench |
Weight | |
|
SK30-
SK40- |
DCK1-55 | A | 19 | - | 11 | 5.05 | - | 55 | M050Z050-30P-D | L025 | 0.42 |
| DCK1-70 | A | 24 | - | 11 | 5.05 | - | 70 | M050Z050-30P-D | L025 | 0.45 | |
| DCK2-80 | A | 24 | - | 14 | 6.62 | - | 80 | M050Z060-30P-D | L025 | 0.54 | |
| DCK3-80 | A | 31 | - | 18 | 8 | - | 80 | M060Z090-30P-D | L03 | 0.68 | |
| DCK4-70 | A | 39 | - | 22 | 10 | - | 70 | M080Z120-30P-D | L04 | 0.68 | |
| DCK5-70 | A | 50 | - | 28 | 13 | - | 70 | M100Z160-30P-D | L05 | 0.88 | |
| DCK6-60 | A | 64 | - | 36 | 16 | - | 60 | M120Z200-30P-D | L06 | 0.89 | |
| DCK1-70 | A | 19 | - | 11 | 5.05 | - | 70 | M050Z050-30P-D | L025 | 1.03 | |
| DCK1-100L | B | 19 | 20.7 | 11 | 5.05 | 60 | 100 | M050Z050-30P-D | L025 | 1.10 | |
| DCK2-75 | A | 24 | - | 14 | 6.62 | - | 75 | M050Z060-30P-D | L025 | 1.10 | |
| DCK2-100 | A | 24 | - | 14 | 6.62 | - | 100 | M050Z060-30P-D | L025 | 1.18 | |
| DCK2-130L | B | 24 | 28.3 | 14 | 6.62 | 75 | 130 | M050Z060-30P-D | L025 | 1.33 | |
| DCK2-160L | B | 24 | 33.6 | 14 | 6.62 | 75 | 160 | M050Z060-30P-D | L025 | 1.49 | |
| DCK3-80 | A | 31 | - | 18 | 8 | - | 80 | M060Z090-30P-D | L03 | 1.22 | |
| DCK3-100 | A | 31 | - | 18 | 8 | - | 100 | M060Z090-30P-D | L03 | 1.32 | |
| DCK3-135L | B | 31 | 34.5 | 18 | 8 | 85 | 135 | M060Z090-30P-D | L03 | 1.54 | |
| DCK3-165L | B | 31 | 39.7 | 18 | 8 | 85 | 165 | M060Z090-30P-D | L03 | 1.76 | |
| DCK4-70 | A | 39 | - | 22 | 10 | - | 70 | M080Z120-30P-D | L04 | 1.21 | |
| DCK4-100 | A | 39 | - | 22 | 10 | - | 100 | M080Z120-30P-D | L04 | 1.46 | |
| DCK4-150L | B | 39 | 43.4 | 22 | 10 | 95 | 150 | M080Z120-30P-D | L04 | 1.90 | |
| DCK4-170L | B | 39 | 46.9 | 22 | 10 | 95 | 170 | M080Z120-30P-D | L04 | 2.16 | |
| DCK5-80 | A | 50 | - | 28 | 13 | - | 80 | M100Z160-30P-D | L05 | 1.80 | |
| DCK5-100 | A | 50 | - | 28 | 13 | - | 100 | M100Z160-30P-D | L05 | 1.52 | |
| DCK5-150 | A | 50 | - | 28 | 13 | - | 150 | M100Z160-30P-D | L05 | 1.80 | |
| DCK5-180 | A | 50 | - | 28 | 13 | - | 180 | M100Z160-30P-D | L05 | 2.90 | |
| DCK6-90 | A | 64 | - | 36 | 16 | - | 90 | M120Z200-30P-D | L06 | 1.22 | |
| DCK6-150 | A | 64 | - | 36 | 16 | - | 150 | M120Z200-30P-D | L06 | 3.50 | |
| DCK6-180 | A | 64 | - | 36 | 16 | - | 180 | M120Z200-30P-D | L06 | 4.22 | |
| DCK7-100 | A | 90 | - | 46 | 19.15 | - | 100 | M200Z290-30P-D | L10 | 3.50 | |
| DCK7-15 | A | 90 | - | 46 | 19.15 | - | 150 | M200Z290-30P-D | L10 | 5.50 | |
,
| ÐͺŠ| ͼʾ | ²à¹ÌÂݶ¤ |
LÐÍ°âÊÖ |
ÖØÁ¿ | |||||||
|
Specifcation |
Figure | D |
d1 |
d |
L1 |
L2 | L | Side-lock screw | Wrench |
Weight | |
| SK50- |
DCK1-80 | B | 19 | 20.7 | 11 | 5.05 | - | 80 | M050Z050-30P-D | L025 | 3.60 |
| DCK1-115L | B | 19 | 20.7 | 11 | 5.05 | 60 | 115 | M050Z050-30P-D | L025 | 3.73 | |
| DCK1-145L | B | 19 | 26 | 11 | 5.05 | 60 | 145 | M050Z050-30P-D | L025 | 4.20 | |
| DCK2-80 | A | 24 | - | 14 | 6.62 | - | 80 | M050Z060-30P-D | L025 | 3.60 | |
| DCK2-105 | A | 24 | - | 14 | 6.62 | - | 105 | M050Z060-30P-D | L025 | 3.78 | |
| DCK2-135L | B | 24 | 26.6 | 14 | 6.62 | 75 | 135 | M050Z060-30P-D | L025 | 3.89 | |
| DCK2-165L | B | 24 | 31.9 | 14 | 6.62 | 75 | 165 | M050Z060-30P-D | L025 | 4.08 | |
| DCK3-85 | A | 31 | - | 18 | 8 | - | 85 | M060Z090-30P-D | L03 | 3.80 | |
| DCK3-110 | A | 31 | - | 18 | 8 | - | 110 | M060Z090-30P-D | L03 | 3.95 | |
| DCK3-140L | B | 31 | 32.7 | 18 | 8 | 85 | 140 | M060Z090-30P-D | L03 | 4.09 | |
| DCK3-170L | B | 31 | 38 | 18 | 8 | 85 | 170 | M060Z090-30P-D | L03 | 4.31 | |
| DCK4-100 | A | 39 | - | 22 | 10 | - | 100 | M080Z120-30P-D | L04 | 3.98 | |
| DCK4-160L | B | 39 | 42.5 | 22 | 10 | 95 | 160 | M080Z120-30P-D | L04 | 4.50 | |
| DCK4-205L | B | 39 | 50 | 22 | 10 | 95 | 205 | M080Z120-30P-D | L04 | 5.13 | |
| DCK5-90 | A | 50 | - | 28 | 13 | - | 90 | M100Z160-30P-D | L05 | 4.30 | |
| DCK5-165 | A | 50 | - | 28 | 13 | - | 165 | M100Z160-30P-D | L05 | 5.20 | |
| CK5-210L | B | 50 | 57.8 | 28 | 13 | 120 | 210 | M100Z160-30P-D | L05 | 5.92 | |
| CK5-270L | B | 50 | 68.4 | 28 | 13 | 120 | 270 | M100Z160-30P-D | L05 | 7.23 | |
| DCK6-85 | A | 64 | - | 36 | 16 | - | 85 | M120Z200-30P-D | L06 | 4.28 | |
| DCK6-155 | A | 64 | - | 36 | 16 | - | 155 | M120Z200-30P-D | L06 | 5.97 | |
| DCK6-215 | A | 64 | - | 36 | 16 | - | 215 | M120Z200-30P-D | L06 | 7.43 | |
| DCK6-250 | A | 64 | - | 36 | 16 | - | 250 | M120Z200-30P-D | L06 | 8.27 | |
| DCK6-300L | B | 64 | 80.5 | 36 | 16 | 160 | 300 | M120Z200-30P-D | L06 | 10.21 | |
| DCK7-85 | A | 90 | - | 46 | 19.15 | - | 85 | M200Z290-30P-D | L10 | 4.96 | |
| DCK7-150 | A | 90 | - | 46 | 19.15 | - | 150 | M200Z290-30P-D | L10 | 6.52 | |
| DCK7-210 | A | 90 | - | 46 | 19.15 | - | 210 | M200Z290-30P-D | L10 | 8.55 | |
| DCK7-250 | A | 90 | - | 46 | 19.15 | - | 250 | M200Z290-30P-D | L10 | 10.35 | |
| DCK7-300 | A | 90 | - | 46 | 19.15 | - | 300 | M200Z290-30P-D | L10 | 12.55 | |
| DCK7-350 | A | 90 | - | 46 | 19.15 | - | 350 | M200Z290-30P-D | L10 | 13.25 | |
